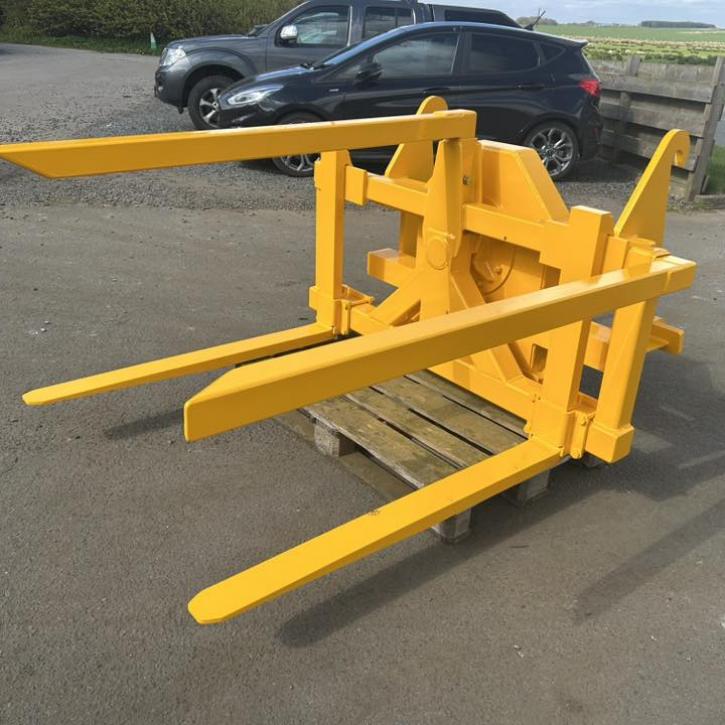

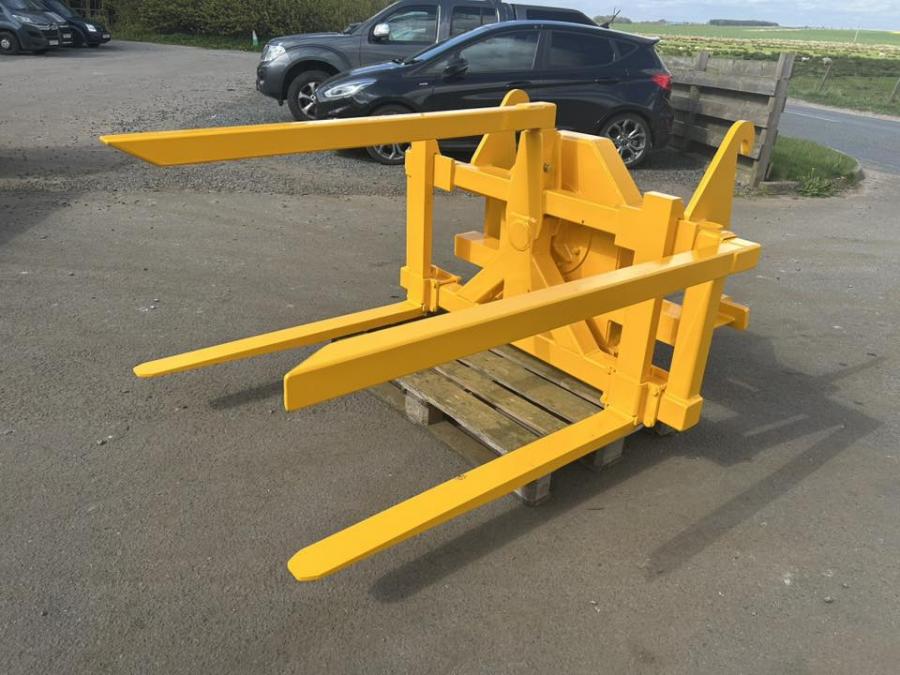

The Murray Potato Box Tippler is a heavy duty attachment capable of tipping 1 ton capacity potato boxes through a full 360 degrees to the right or left.
Top and side arms are provided for locating the box in a position during the tipping operation, the side arm can be positioned on the right or left and both are adjustable to suit varying box dimensions.

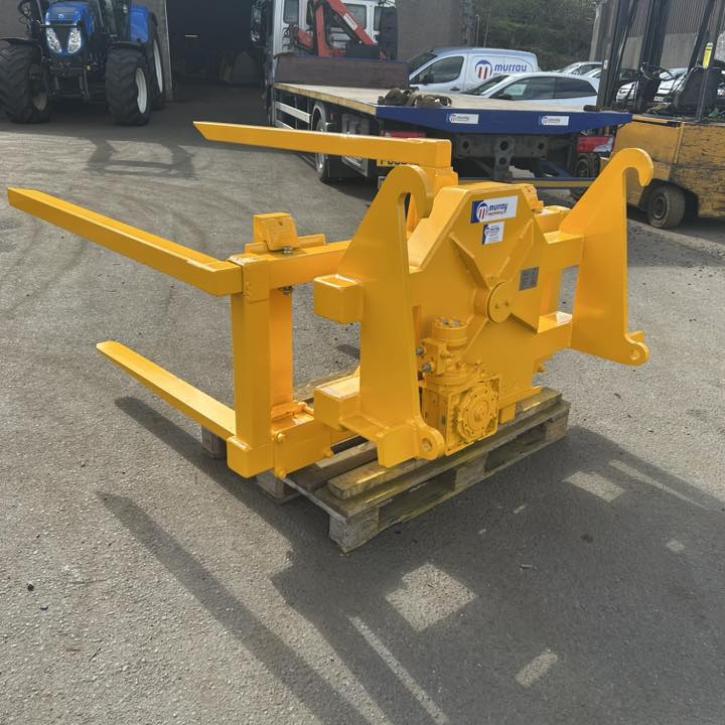

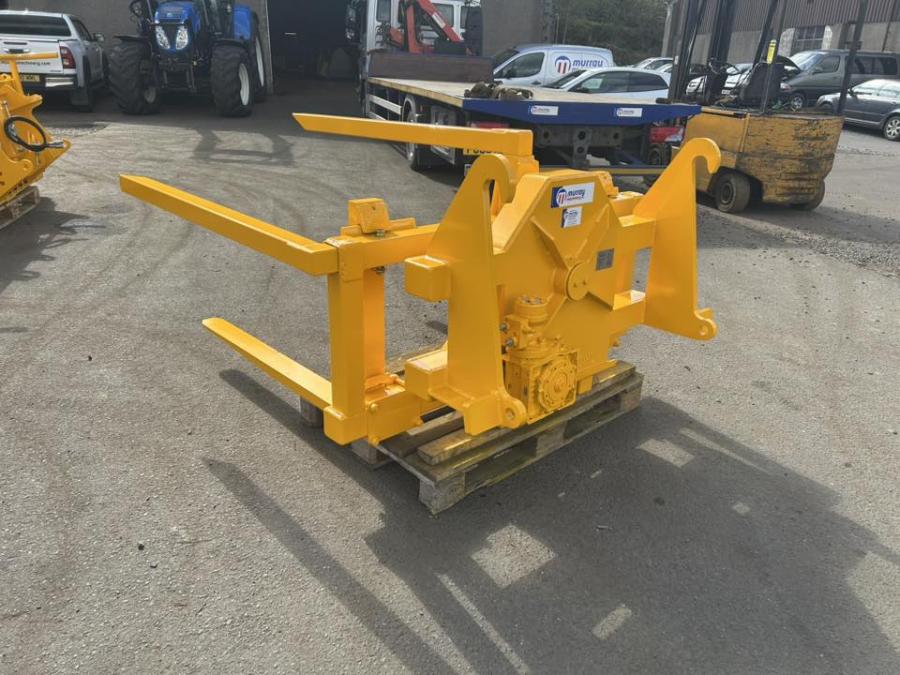

The Tippler is driven by a hydraulic motor – gearbox and duplex chain final drive. The axle revolves in large phosphor bronze bushes with grease lubrication.
|360’ sideways rotating with pallet forks||PBT/360/C/||LS, TH, FL, F||£5,695*|
* Cost excluding VAT
Machine Suitability (MS) Column Key:
- Loading Shovel
- Skid Steer
- Front Loader
